Quick Reference Guide
EMV Restaurant Z8 with AURA
Non-touchscreen Z-line models
Why using the AURA interface is easy!
The interface for the Z8 non-touch screen terminal has been updated with new software, designed to enhance and improve the user experience. We call it AURA.
Although the AURA interface looks different from the Legacy interface, the differences in support and functionality are minimal, with virtually no changes.
The following actions remain the same:
- building a TPN in STEAM
- accesing data in DeNovo
- downloading a terminal
- terminal menus
- transaction flow
- same host platform certifications
The following actions are different:
- smart device-type look with a sleeker, more modern layout
- menus, Favorites and Call Me are all accessible using the F1 key (you now use one button instead of three!)
- in STEAM, an AURA software model can be identified by having ‘AURA’ in the name eg. V3AURACoreF w CrDb_20200915
F1 key to access the all menus, including Core Menu, Favorites and Managed Services.

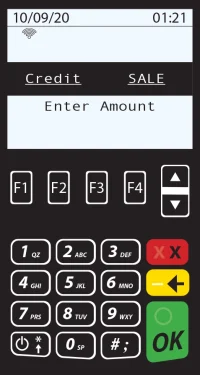

Legacy: Idle Prompt Screen

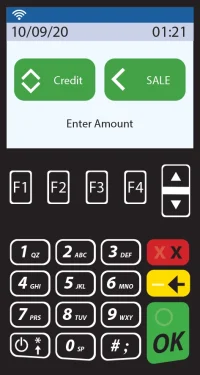

Aura: Idle Prompt Screen
Although the AURA interface looks different from the Legacy interface, please note that the transaction flow is exactly the same for both interfaces.
To change payment type press
To change transaction type press

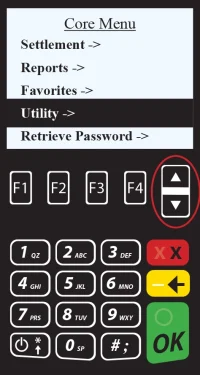

Legacy: Accessing the Core Menu

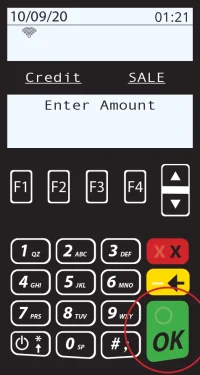

Press the green OK key to access the CORE menu then use the arrow keys to scroll down the menu until you reach the selection you desire.
Aura: Accessing The Core Menu

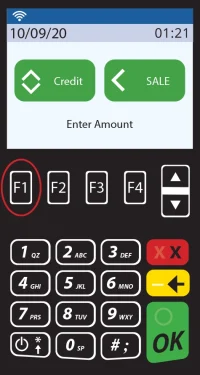

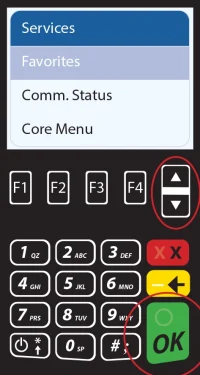

Press the F1 key to access the SERVICES menu then use the arrow keys to scroll down the menu until you reach the CORE MENU. Press the green OK key.

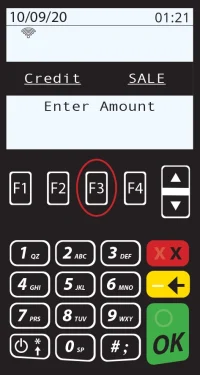

Legacy: Accessing Favorites

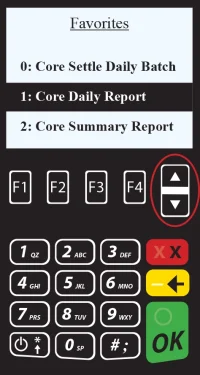

Press the F3 key to access the FAVORITES menu and then use the arrow keys to scroll down the menu to highlight your desired FAVORITE. Press the green OK key.
Aura: Accessing Favorites

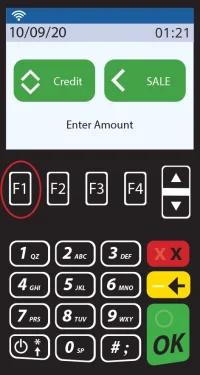

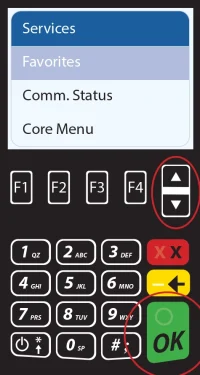

Press the F1 key to access the SERVICES menu. Use the arrow keys to scroll down the menu until you reach FAVORITES. Press the green OK key.
