Quick Reference Guide

EMV Restaurant Z9 & Z11 with AURA

Touchscreen Z-line models

Why using the AURA interface is easy!

The interface for the Z9/Z11 touch screen terminals has been updated with new software, designed to enhance and improve the user experience. We call it AURA.

Although the AURA interface looks different from the Legacy interface, the differences in support and functionality are minimal, with virtually no changes.

The following actions remain the same:

  • building a TPN in STEAM
  • accessing data in DeNovo
  • downloading a terminal
  • terminal menus
  • same host platform certifications
  • access the Favorites menu by tapping STAR icon
  • access Call Me by tapping CALL icon

The following actions are different:

  • smart device-type look with a sleeker, more modern layout
  • icon-led transaction flow
  • access the Core menu by tapping on the MENU icon
  • in STEAM, an AURA software model can be identified by having ‘AURA’ in the name eg. V3AURACoreF w CrDb_20200915

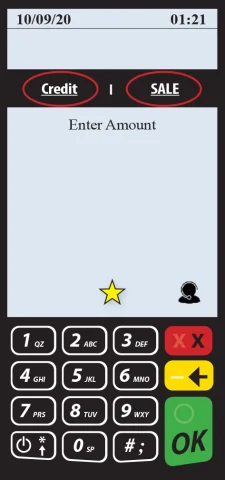

Legacy: Idle Prompt Screen

Tap on the word CREDIT to change payment type and SALE to change transaction type

legacypromptscreen

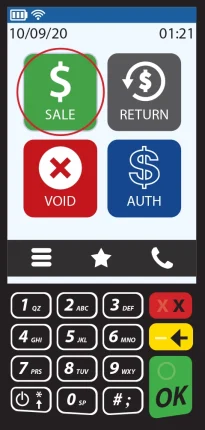

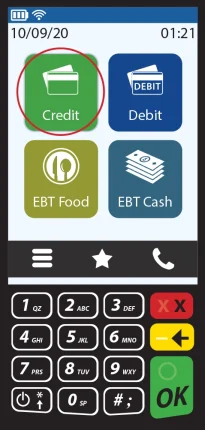

Aura: Idle Prompt Screen

Tap on the payment type icon you desire on the first screen then on the transaction type icon on the following screen.

aurapromptscreenz9z11
aurapromptscreenz9z112

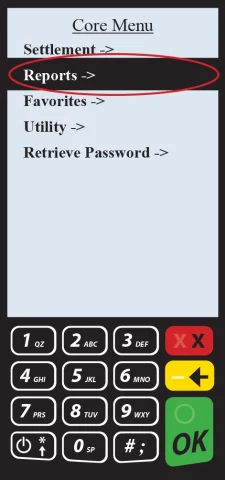

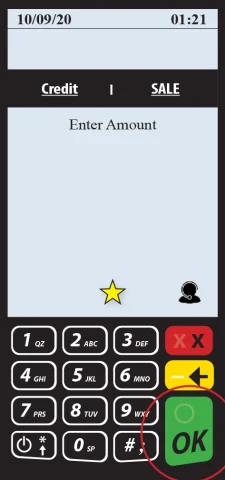

Legacy: Accessing the Core Menu

Press the green OK key to access the CORE menu and then tap the screen to select the item you desire.

legacycoremenuz9z11
2legacycoremenuz9z11
Aura: Accessing The Core Menu

Press the MENU icon to access the CORE menu and then tap the screen to select the item you desire.

auracoremenuz9z11
2auracoremenuz9z11

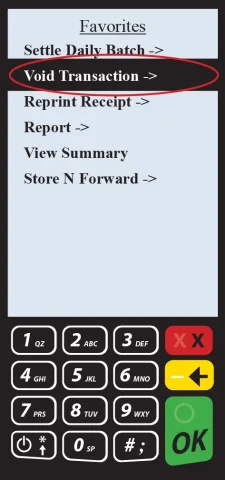

Legacy: Accessing Favorites

Press the yellow STAR to access the FAVORITES menu and then tap the screen to select the item you desire.

legacyfavoritesz9z11
2legacyfavoritesz9z11

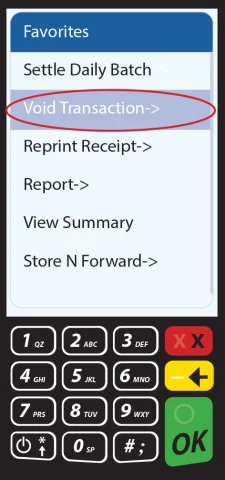

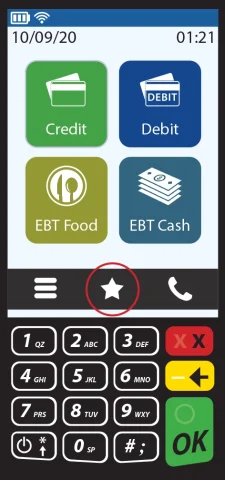

Aura: Accessing Favorites

Press the STAR icon to access the FAVORITES menu and then tap the screen to select the item you desire.

auraaccesingfavoritesz9z11
2auraaccesingfavoritesz9z11
